Workflow Detail: Elaborate the Design

Purpose How to Staff Work Guidelines

Purpose

The purpose of this detailed workflow is:

• To flesh-out and verify the architecture defined in Workflow Detail: Design the Architecture
• To work-out the details of the system's behavior and structure

How to Staff

See section "Staffing" in the following Worker descriptions:

• Worker: Designer
• Worker: Design Reviewer
• Worker: Database Designer

Work Guidelines

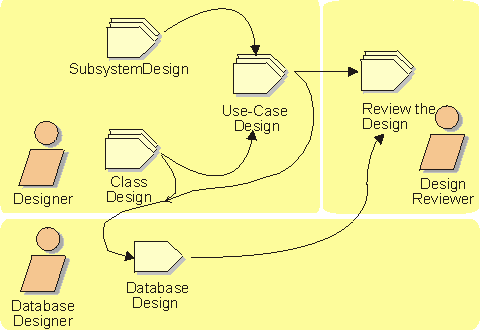

These design activities are performed largely in parallel, with a great deal of iteration between them: changes in the structure of the design model will influence the data model, and data model optimization will often subtly influence the design model.   As classes are added to the design model, re-packaging will occur, sometimes into subsystems (where there is a need to use a package as a whole as a behavioral model element).   Adding classes to existing subsystems may cause the subsystem boundaries to be reconsidered.  In all cases, Use Case Realizations need to be examined and updated to make sure they are complete and consistent.

These activities dominate the project during middle and later Elaboration, tapering off in Construction as the focus shifts to building the system.
