Implementing OLAP in Delphi Applications

Natalia Elmanova


"More details on using ADO Extensions in Delphi applications you can find in "Advanced Delphi Developer's Guide to ADO" (by Alex Fedorov and Natalia Elmanova, ISBN: 1-55622-758-2, published in June 2000 by Wordware Publishing, Inc) ".

OLAP Basics

What are OLAP and Data Warehousing?
What Are Decision Cubes?

Client-side OLAP Applications in Brief

How to Implement a Client-side OLAP
Pros and Cons of Client-side OLAP Applications

Using MS SQL Server 7.0 OLAP services and Delphi ADO components

OLAP Services Architecture
Creating OLAP cubes
Retrieving Cube Metadata in Delphi Applications
Using Multidimensional Expressions (MDX)

Using ADO MD Extensions

ADO MD Objects
Accessing ADO MD from Delphi

ADOMD Usage Examples

Using the Catalog Object and its Collections
Using Cellset Objects

Pros and Cons of Delphi server-side OLAP applications

Conclusion


In this article, we will talk about using ADO for On-Line Analytical Processing (OLAP) – the data management techniques that are widely used in decision support systems and data warehousing. We will also discuss two ways of implementing OLAP with ADO and Delphi, such as using client-side OLAP and server-side one.

OLAP Basics

Enterprise information systems contain, as a rule, different user applications. Among them, there are applications for decision support, multidimensional data analysis, obtaining trends, receiving statistics, and several other tasks. They usually have an advanced user interface that includes business graphics and provides functionality for obtaining various aggregate data - sums, counts, averages, maximal and minimal values, and so on.

Behind the user interface of such decision support applications, there is an implementation of providing such analysis. Such implementation is based on OLAP - this term, that may be new to the most of our readers, is explained in the next section.

What are OLAP and Data Warehousing?

OLAP – On-Line Analytical Processing is a popular technology for multidimensional business analysis. It is based on the multidimensional data model that will be discussed later. The concept of OLAP was described in 1993 by Dr. E.F.Codd, the well-known database researcher and inventor of the relational database model. At present time, OLAP support is implemented in different databases and tools. For example, the most of the database servers provide OLAP facilities, sometimes as separate specializes data storages and tools for operating them (e.g. ORACLE Express OLAP, Microsoft SQL Server 7.0 OLAP Services, and so on).

OLAP is a key component in data warehousing. Data warehousing is the process of collecting and sifting data from different information systems and making the resulting information available to end users for analysis and reporting. Data warehouse can be used to describe these stores of collected and summarized information that is available for browsing by users.

In most cases, there is no easy way to find the information necessary for making a decision in relational databases. For example, the data structures can be difficult for the end user to understand, or the user questions are quite complex when being expressed in SQL language.

Imagine the following example. To get an answer to the question like "Who are the top customers in each region for the year 1998 arranged by quarter?", we must execute a lot of particular queries to obtain a two-dimensional subset of aggregate values and then show this subset to the user. That is why any OLAP implementation contains advanced query tools, which hide the database complexity from the end user.

Talking about OLAP tools, we should say, that OLAP facilities are also can be found in development tools and office applications. Contrary to the server-side OLAP, such as ORACLE Express OLAP or Microsoft SQL Server 7.0 OLAP Services, these facilities usually implement client-side OLAP. For example, within Microsoft Excel 2000, a new PivotTable dynamic view function will provide connectivity between Excel spreadsheets and OLE DB Provider for SQL Server OLAP Services. This gives us an ability to create a local subset from a larger aggregate data from database server.

As for Delphi, its Enterprise version comes with a set of client-side OLAP components, which can be found in the Decision Cube page of the Component Palette. Later, we will say several words about them.

Using OLE DB Provider for SQL Server OLAP Services, Delphi applications can also connect to server-side OLAP storages to retrieve aggregate data to end users. Later we will see how to create such applications.

Before we create decision support applications, let's spend some time discussing what multidimensional cubes are, and what data they contain.

What Are Decision Cubes?

In this section, we will discuss the Decision Cube and OLAP concepts in details. To provide a simple example of what multidimensional analysis is, we will use the NorthWind database on the Microsoft SQL Server and we will create a view based on several tables from it. Here is the SQL source for this view.

CREATE VIEW AS
SELECT [Order Details].OrderID, Orders.OrderDate,
CONVERT(varchar, Orders.CustomerID) AS CustomerID,
CONVERT(varchar, Customers.Country) AS Country,
CONVERT(varchar, Customers.City) AS City,
SUM(CONVERT(money, [Order Details].UnitPrice *
[Order Details].Quantity *
(1 - [Order Details].Discount)  100) * 100) AS Payment,
CONVERT(varchar,Shippers.CompanyName) AS CompanyName,Orders.Freight,
CONVERT(varchar, Employees.LastName)AS EmployeeName
FROM [Order Details] INNER JOIN
Orders ON [Order Details].OrderID = Orders.OrderID INNER JOIN
Customers ON Orders.CustomerID = Customers.CustomerID INNER JOIN
Shippers ON Orders.ShipVia = Shippers.ShipperID INNER JOIN Employees ON
Orders.EmployeeID = Employees.EmployeeID
GROUP BY [Order Details].OrderID, Orders.OrderDate,
Orders.Freight, Customers.Country, Customers.City,
Orders.CustomerID, Employees.LastName,Shippers.CompanyName

This view returns us a dataset with nearly complete information on the all orders that will be used in the examples in this article.

If we use Microsoft Access, the same view may look like the one shown below.

SELECT [Order Details].[OrderID], [Orders].[OrderDate],
[Orders].[CustomerID],[Customers].[Country], [Customers].[City],
SUM(([Order Details].[UnitPrice]*
[Order Details].[Quantity]*(1-[Order Details].[Discount])100)*100) AS Payment,
[Shippers].[CompanyName], [Orders].[Freight],
[Employees].[LastName] AS EmployeeName
FROM Shippers INNER JOIN ((Employees INNER JOIN
(Customers INNER JOIN Orders ON [Customers].[CustomerID]=[Orders].[CustomerID])
ON [Employees].[EmployeeID]=[Orders].[EmployeeID]) INNER JOIN [Order Details] ON
[Orders].[OrderID]=[Order Details].[OrderID]) ON [Shippers].[ShipperID]=[Orders].[ShipVia]
GROUP BY [Order Details].[OrderID], [Orders].[OrderDate],
[Orders].[Freight], [Customers].[Country],
[Customers].[City], [Orders].[CustomerID],
[Employees].[LastName], [Shippers].[CompanyName];

The resulting recordset for CustomerID, OrderDate, CompanyName, Freight, ShipCountry, and Payment fields is shown in the table below.

 CustomerId  OrderDate  CompanyName  Freight Country   Payment
VINET 07.04.96 Federal Shipping 32.38 France 440
TOMSP 07.05.96 Speedy Express 11.61 Germany 1863.4
HANAR 07.08.96 United Package 65.83 Brazil 1552.6
VICTE 07.08.96 Speedy Express  41.34 France 654.06
VINET 09.02.96 United Package 1.15 France 121.6
HANAR 07.10.96 United Package 58.17 Brazil 1444.8
VINET 08.06.96 Speedy Express 6.01 France 538.6
BERGS 08.12.96 United Package 92.69 Sweden 1488.8
TOMSP 02.14.97 Speedy Express 14.68 Germany 246.24
BERGS 08.14.96 Speedy Express 8.98 Sweden 613.2
TOMSP 05.26.97 United Package 1.43 Germany 240.1
BERGS 02.12.97 Federal Shipping 3.5 Sweden 1031.7
BERGS 02.13.97 Speedy Express 9.3 Sweden 174.9

What are the aggregate data that can be obtained from such table or view? Usually they can answer to the following typical questions:

There may be different questions, depending of the kind of the company business, but we have listed just typical ones.

Since we are working with the data that resides in a database, we need to translate these human-readable questions into SQL queries. For example:

--
-- What is a sum of payments for French customers orders? --
--
SELECT SUM (Payment) FROM Ord_pmt
WHERE Country='France'
--
-- What is the sum of payments for orders shipped by Speedy --
-- Express in the 1st Quarter of 1996?
--
--SELECT SUM (Payment) FROM Ord_pmt
WHERE CompanyName='Speedy Express'
AND OrderDate BETWEEN 'December 31, 1995' AND 'April 1, 1996'
--
-- How many orders of French customers were shipped –-
-- by Speedy Express? --
--
SELECT count(*) FROM Ord_pmt
WHERE Country='France'
AND CompanyName='Speedy Express'
--
-- How many orders of French customers were processed --
-- in Quarter 1 of 1997 and shipped by Speedy Express? --
--
SELECT COUNT(*) FROM Ord_pmt
WHERE Country='France'
AND OrderDate BETWEEN 'December 31, 1996' AND 'January 1, 1998'
AND CompanyName='Speedy Express'

Note. In some cases, such text queries can be translated to its SQL equivalent with the help of Microsoft English Query.

As we may expect, the result returned by execution of any of the queries shown above will return some number. As you can see from the SQL query source, we can replace 'France' to 'Austria', or any other country name, execute this query again, and obtain another value. Doing this with all customer names, we will obtain a set of values that can be presented in a simple table shown below.

Country Sum(Payment)
Argentina 8119.10
Austria 128003.84
Belgium 33824.85
Brazil 106925.77
Canada 50196.30
Denmark 32661.02
Finland 18810.05
France 81358.31
Germany 230284.62
Ireland 49979.90


The table shown above contains aggregate data and can be considered as one-dimensional set of values.

Now let's look at the second and the third query that contain two conditions in the WHERE clause.

--
-- What is the sum of payments for orders shipped by Speedy --
-- Express in the 1st Quarter of 1996? --
--
SELECT SUM (Payment) FROM Ord_pmt
WHERE CompanyName='Speedy Express'
AND OrderDate BETWEEN 'December 31, 1995' AND 'April 1, 1996'
--
-- How many orders of French customers were shipped –-
-- by Speedy Express? --
--
SELECT count(*) FROM Ord_pmt
WHERE Country='France'
AND CompanyName='Speedy Express'

If we run this query changing the Country value or the CompanyName value for every country or company name we have in the database, we will get a 2-dimensional set of values shown in the following table.

CompanyName

Country Federal Shipping Speedy Express United Package
Argentina 4 5 7
Austria 13 12 15
Belgium 8 3 8
Brazil 17 31 35
Canada 16 4 10
Denmark 7 6 5
Finland 9 8 5
France 21 27 29
Germany 28 41 53
Ireland 6 4 9


This set of values is called cross table or pivot table. Creating such tables from the original data is the simple data processing function found in many spreadsheet packages like Microsoft Excel.

Now let's look at the fourth query.

--
-- How many orders of French customers were processed --
-- in Quarter 1 of 1997 and shipped by Speedy Express? --
--
SELECT COUNT(*) from Ord_pmt
WHERE ShipCountry='France'
AND OrderDate BETWEEN 'December 31, 1996' AND 'January 1, 1998'
AND CompanyName='Speedy Express'

This query contains three conditions in the WHERE clause. Therefore, if we want to get all possible results for this query, we must supply different data for all three parameters. As a result, we will get a 3-dimensional set of values that can be presented as a cube shown in the figure below.

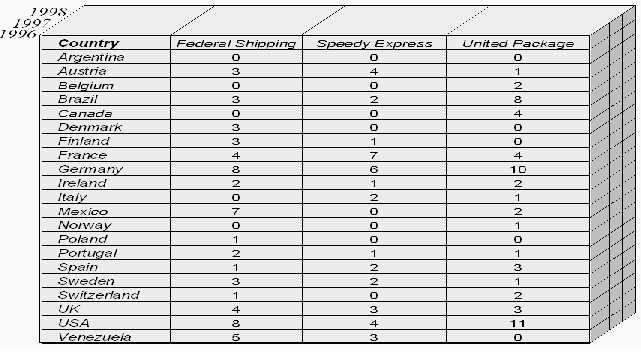

Any cell of this cube contains a numeric value that results from a query similar to query shown above, but with different parameter values in the WHERE clause.

If we slice the cube by a plane parallel to one of the cube edge, we can get different types of the two-dimensional tables. Such tables are called cross-sections (or slices) of such cube. The example of such slices is shown below.

Orders in the USA

CompanyName 1996 1997 1998
Federal Shipping 8 15 17
Speedy Express 4 19 8
United Package 11 26 14


Orders delivered by Federal Shipping

Country 1996 1997 1998
Argentina 0 1 3
Austria 3 7 3
Belgium 0 4 4
Brazil 3 9 5
Canada 0 10 6
Denmark 3 3 1
Finland 3 3 3
France 4 10 7
Germany 8 15 5
Ireland 2 4 0


If we create a sample query with 4 or more conditions in the WHERE clause, we will get a 4-dimensional (or 5-dimensional, 6-dimensional, etc.) set of values.

It should be clear, that along with sums and counts, we can also put into the cube cells maximal, minimal, and average values, i.e. aggregate SQL functions such as MIN, MAX, AVG. Sometimes these aggregate values are called summaries, and variables used in queries are called dimensions. The original source data that is summarized (e.g. payments) is called measures.

Within each dimension of the cube, data can be organized into a hierarchy that represents detail levels of the data. For instance, within the OrderDate dimension, there can be the following levels: years, quarters, months, and days.

This multidimensional data model makes it simple for users to formulate complex queries, arrange data in a report, switch from summary to detailed data, and filter or slice data to create different subsets.

As we have mentioned earlier, such multidimensional analysis can be provided both on a database server and inside a client application. We will begin with a short discussion of the possible ways of implementing client-side OLAP.

Client-side OLAP Applications in Brief

In this section, we will discuss in brief possible ways of creating Delphi client-side OLAP applications.

How to Implement a Client-side OLAP

As we have said before, Delphi Enterprise includes a set of Decision Cube components for implementing client-side OLAP. These components provide a convenient user interface of analytical applications. But using them with ADO data sources will face several difficulties.

First, the Decision Cube components do not support TWideStringField fields. So, we need to obtain the resulting dataset without such fields (such as we have done in the view created earlier). However, this way of solving the problem of unsupported WideString data in Decision Cube components is not universal. For example, we may have not enough privileges to create database views. In this case, we need to create calculated fields that contain non-unicode versions of the WideString fields and use them to create cube dimensions, or redefine all WideString fields as TString fields by replacing all "WideString" substrings to "String" substrings in the appropriate *.pas and *.dfm files.

Second, the TDecisionQuery component that contains a specialized form of TQuery used to define the data in a decision cube is a fully BDE-oriented component. In Delphi 5, it does not work with ADO data sources at all.

We can, of course, replace the TDecisionQuery component with any ADO dataset component (e.g., TADOQuery), and type the query for the calculating summaries manually, for example:

SELECT CustomerID, OrderDate, CompanyName, Country,
SUM(Payment) as SUM_Pmt, COUNT(Payment) as CNT_Pmt
FROM Ord_pmt
GROUP BY OrderDate, Country, CustomerID, CompanyName

In this case, we can create an application with a convenient user interface, containing grids, charts and controls to hide, show, expand and collapse dimensions, and, at design time, it will look beautiful. However, and it is the third problem, when we run such application, its run-time behavior becomes strange: not all of the data is presented correctly (for example, some data is lost), indexes for cubes are calculated significantly more slowly than at design time, the Decision Cube capacity appears to be low even a dataset is small, and so on. Transferring data to the client dataset also does not improve the situation. In fact, this is the most serious reason not to use these components with ADO data sources. However, we expect that these disadvantages will be improved in the next versions of Delphi.

The radical way of how to solve these three problems is to edit the source code of the Decision Cube components. However, after that, you should not expect any support from Borland in the case of any problems with such components.

What should be recommended for implementing client-side OLAP for ADO data sources instead of using Decision Cube? First, you can use Excel automation, and, in this case, your applications could provide all Excel Pivot Table services for your users. However, in this case, your users must have Excel installed. Second, you can calculate summaries in your code and use ordinary grids and charts.

Pros and Cons of Client-side OLAP Applications

In this section, we will try to show you the advantages and disadvantages of using client-side OLAP. Let's start with the "bright" part of the client-side OLAP.

The advantage of client-side OLAP applications is that in this case, we can provide on-line analytical processing possibilities for any data source. It does not matter, whether this data source provides OLAP services itself. It is the most commonly way to analyze data on desktop databases, SQL servers that do not have its own OLAP implementations (such as InterBase), data that comes from various ODBC and OLE DB data sources, and so on. Unfortunately, that is all, what can be said about advantages of this approach.

The disadvantages of client-side OLAP are very serious, and you must remember about them before starting to create such applications.

First, the client-side OLAP applications can consume a lot of memory and produce a serious traffic, as they bring a lot of data from the database server to the client application. Therefore, the amount of such data should be estimated correctly, and these estimations must include the possible growth of database in the future. In addition, this restricts the amount of dimensions. In a general case, for any client-side OLAP tool, using more than six of them is not recommended.

Second, at the time of this writing, the particular Delphi implementation of client-side OLAP components is not applicable for using with ADO data sources. We hope this to be improved in the next version of Delphi.

Another way to create OLAP applications is to use the server-side OLAP. As we will see in the next section, server-side OLAP is free from the disadvantage like bringing all summaries to the client, and can be used with large data sources.

Now we will discuss the second way of implementing OLAP. It is to use server-side OLAP extensions implemented in Microsoft SQL Server 7.0 along with Delphi ADO components or ADO MD extensions.

We will begin with creating OLAP cubes with the Microsoft SQL Server OLAP Manager. Then we will continue with creating several applications for querying such cubes using the OpenSchema method, and querying the cubes using Multidimensional Expressions that are extensions of the SQL language for querying OLAP cubes. And, at the next section, we will show how to use ADO MD extensions in Delphi server-side OLAP applications.

Using MS SQL Server 7.0 OLAP services and Delphi ADO components

In this section, we will provide one of the ways, how to use ADO MD extensions and create applications, which use server-side OLAP provided by MS SQL Server 7.0 OLAP services.

OLAP Services Architecture

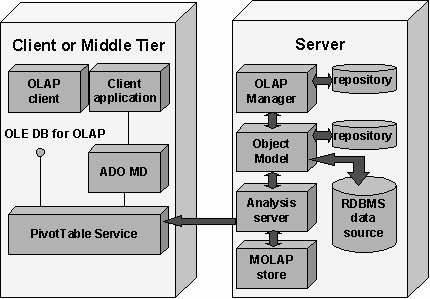

SQL Server 7.0 OLAP Services consist of server and client components. The client components can also be used as middle-tier software in multi-tier systems.

On the server side, the OLAP server operates as a Microsoft Windows NT service and provides the core computational functionality. OLAP Manager is the built-in administrative user interface for OLAP Services. It can be executed on a computer separate from the OLAP server. It allows the database administrator to design OLAP data models, access information in RDBMS stores, design aggregations, and populate OLAP data stores. The OLAP metadata definitions are stored in a special repository.

It is essential that OLAP Services can access source data not only in SQL Server, but in any data source, which can be available through OLE DB data providers.

On the client side, OLAP Services includes a component called PivotTable Service. PivotTable Service is designed to connect OLAP client applications to the OLAP Services server. All access to data managed by OLAP Services is provided by this service through the OLE DB for OLAP interface.

Creating OLAP cubes

Before creating any Delphi application, we need to create an essential part of a whole server-side OLAP system. This part is a multidimensional OLAP cube, which is stored and maintained by a database server.

We consider you have already installed Microsoft SQL Server 7.0. Now, we need to install also SQL Server 7.0 OLAP Services that are provided with Microsoft SQL Server 7.0 and can be found in SQL Server 7.0 Components list at the second screen of the installation application.

After SQL Server 7.0 OLAP Services being installed, it is necessary to run OLAP Manager. Then, we could connect to MS SQL Server and look at the list of repositories containing cube definitions.

The first step is to create a new OLAP database (let its name be NorthWind1). It can be done by right-clicking on a Database node in a tree view in the left part of the OLAP Manager, and selecting the New Database option. The next step is to create a new cube by right-clicking on a Cubes node of a created database, and selecting the New Cube option. Then we can use both Cube Editor and Cube Wizard. We will select the Cube Wizard option and follow the dialog boxes appearing.

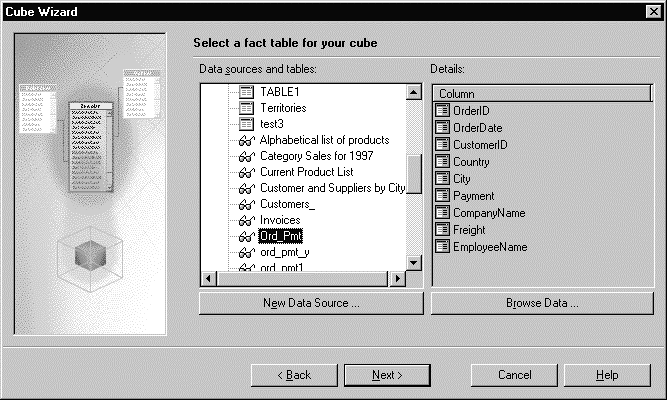

In the first dialog box, we need to select the data source for our cube. For doing this, it is necessary to select OLE DB Provider for MS SQL Server, and then choose a fact table containing data for summaries. Let it be our Ord_pmt view, created earlier.

Then, we will be asked what numeric values should be used as cube measures (as we have said before, measures are the source data for creating summaries). In the Ord_pmt view, there are three numeric fields – the OrderID, Freight and Payment fields. Let's select both Freight and Payment fields as cube measures.

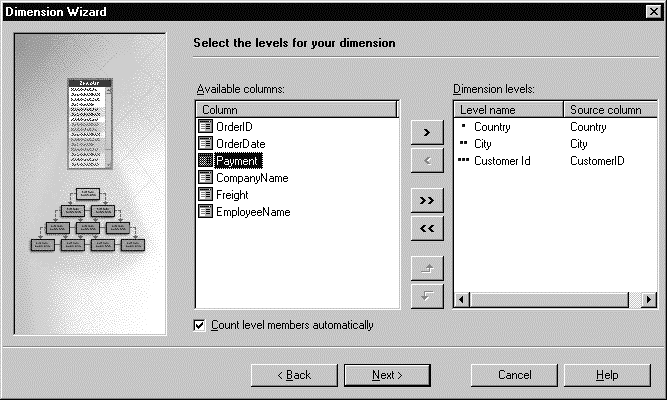

In the next dialog, we need to define dimensions of the cube. For doing this, we can press the New Dimension button, and the Dimension Wizard occurs. For creating all necessary dimensions, we need to run the Dimension Wizard four times.

Let the first dimension is the OrderDate. In the first dialog box of the Dimension Wizard, we will select the same Ord_pmt view as a dimension source. In a general case, the source of dimension can be any other table of view, which is in the lookup relation with the fact table or view. In the second dialog, we need to select the type of dimension. Let it be a time dimension. In the third dialog, it is necessary to choose a type of date/time hierarchy. As our data contains no time, we will select 'Year, Quarter, Month, Day' type of hierarchy. We also can point, where a year starts. It is very useful, when, for example, the fiscal year is not the same as the calendar year.

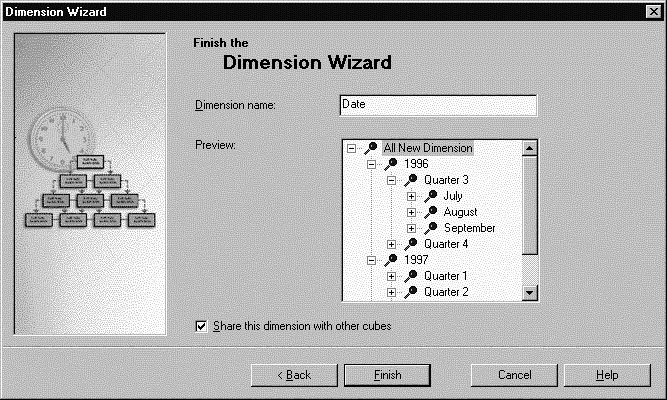

At last, we can name the created dimension as Date, and browse all hierarchy levels of this dimension:

The next step is to create another dimension. Let it be the Country/City/CustomerId dimension. In fact, this dimension contains three levels of "geographical" hierarchy, because in this example any customer resides in the particular city and country. Therefore, we should select the Country, City and CustomerId fields to be the levels of the hierarchy of this dimension:

The third dimension is very simple. It contains only the CompanyName field. At last, the fourth dimension also contains only one EmployeeName field.

Finishing creating all four dimensions, we need to save the cube. Then, we will be asked, what type of data storage must be created: MOLAP (Multidimensional OLAP; it means that all data, both source and aggregates, is stored in a multidimensional database, and this way is recommended for use with analytical applications), ROLAP (Relational OLAP; all data are stored in a relational database, and this way is recommended to use in applications responsible both for data modification and analysis), or HOLAP (Hybrid OLAP; aggregate data is stored in a multidimensional database, and source data is stored in a relational database). We will select the MOLAP data storage. After that, we can also set some storage options to provide a necessary balance of the storage size and the performance of user query executing.

Then, we are able to process the cube, i.e. to calculate aggregate data.

At any time, you can edit the created cube. It is also possible to create it in editor without using wizards. In addition, we could create it directly from tables instead of creating views.

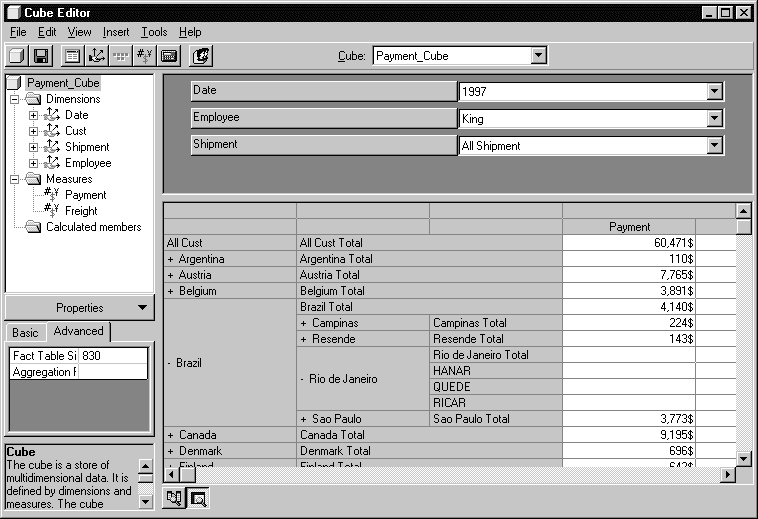

After processing the cube, we can view its data. It can be done by selecting the View/Data option from the Cube Editor menu. In the Cube Editor, we can drag-and-drop dimensions, show and hide them, expand and collapse hierarchy levels, move dimensions from columns to rows, filter cube data by selecting possible values.

Thus, we have prepared all necessary server data. We have created an OLAP cube based on previously created view. It has four dimensions:

Dimension name  Level(s)  Description
Cust Country, City, CustomerId Geographical hierarchy for registered customers
Date Year, Quarter, Month, Day Date hierarchy for processed orders
Shipment CompanyName The shipment companies list
Employee EmployeeName The employee list


And, in addition, this cube has also two measures:

Measure Name  Description
Payment Payment for a particular order
Freight Freight expenses for a particular order


Thus, we have created the cube with aggregate data. Now we need to create applications to access its data. But, before querying cubes, a user needs to know, what cubes are contained in multidimensional database, what are their dimensions, hierarchies, levels, and their members. In other words, a user needs to know, what query parameters could be used. In the next section, we will show how to do it using the OpenSchema method of the TADOConnection component.

Retrieving Cube Metadata in Delphi Applications

How to obtain information about cubes, their dimensions, hierarchies, levels, and their members in Delphi applications? Let's recall, that we have already studied how to do it with relational databases.

The OLAP cubes created with Microsoft SQL Server 7.0 OLAP Services can belong to multidimensional database that must not be of relational type. But, in spite of this, they are accessible via Microsoft OLE DB Provider for OLAP Services. So, to retrieve the cube metadata, we are able to use the OpenSchema method of the ADO Connection object that is accessible through the Delphi TADOConnection component.

Looking carefully to the list of possible values of TSChemaInfo parameter, we can find some of them concerning to cubes. They are siCubes, siDimensions, siHierarchies, siLevels, siMeasures, siProperties, siMembers values. Using them as the first parameter in the OpenSchema method, we can retrieve information on cubes, dimensions, their hierarchies, levels, measures, members in the particular multidimensional database.

Let's create an example of using this method to retrieve cube metadata. For doing this, we need to create a new Delphi project, and place the TComboBox, TButton, TDBGrid, TDBNavigator, TADOConnection, TADODataSet, TDataSource components on a form. Then, let's set the DataSource value of the DBNavigator1 and DBGrid1 components to DataSource1, the DataSet property of the DataSource1 component to ADODataSet1, and fill the Items value of the TComboBox component with the following strings:

Then, let's set up the Connection property of the ADOConnection1 component. We need to select the Microsoft OLE DB Provider for OLAP Services as a provider name, input or select the computer name with multidimensional database as a data source name, insert the user name and password, and then select the multidimensional database name which metadata we want to retrieve.

The next step is to create the OnClick event handler for the Button1 component:

procedure TForm1.Button1Click(Sender: TObject);
var
SI:TSchemaInfo ; i:integer;
begin
 //Select a type of metadata query
 case ComboBox1.ItemIndex of
  0: SI:=siCubes;
  1: SI:=siDimensions;
  2: SI:=siHierarchies;
  3: SI:=siLevels;
  4: SI:=siMeasures;
  5: SI:=siProperties;
  6: SI:=siMembers;
 end;
 //Retrieve results of the metadata query to ADODataSet1
 ADOConnection1.OpenSchema(SI,EmptyParam,
 EmptyParam,ADODataSet1);
 //Open a query result
 ADODataSet1.Open;
 //Change appearance of the DBGrid
 for i:=0 to DBGrid1.Columns.Count-1 do
  DBGrid1.Columns[i].Width:€;
 end;
end;

And, at last, let's initialize the ItemIndex property of the ComboBox1 component:

procedure TForm1.FormCreate(Sender: TObject);
begin
 ComboBox1.ItemIndex:=0;
end;

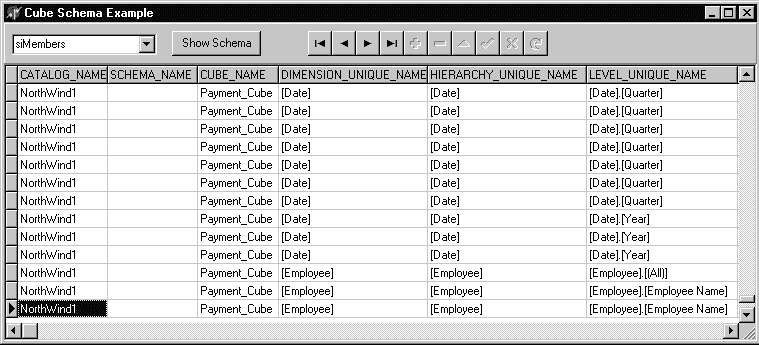

Now we can compile and run this application. The example of its output is shown below:

If we need to filter the retrieved metadata, we could define the criteria what metadata to show. This criteria must be the second parameter of the OpenSchema method, and it contains an array of values for filtered columns of the resulting dataset. For example, if we want to show only the members of the Employee dimension of the Payment_Cube cube of the NorthWind1 multidimensional database, the following code could do it:

cr1:=WideString('NorthWind1');
cr2:=WideString('Payment_Cube');
cr3:=WideString('Employee');
criteria:= VarArrayOf([cr1,Null,cr2,cr3]) ;
ADOConnection1.OpenSchema(siMembers,criteria,EmptyParam,ADODataSet1);

Now we know how to retrieve the cube metadata into the client Delphi application. Now we can find, what cubes are available, and what are their dimensions, hierarchies, levels and members. So, we have enough information to create queries to the cube.

However, in most of the cases, we are interested both in cube metadata and in cube data. In a general case, it is necessary to query the cube to obtain its slices, and then show them in a client application, with these queries being based on the knowledge about the cube metadata.

So, now it is time to create queries that can be used in a client Delphi applications. For querying cubes, the Multidimensional Expressions (MDX) are used. Multidimensional Expressions are an SQL language extensions used for querying cubes accessible through OLE DB Provider for OLAP Services. We will provide a brief description of these SQL language extensions in the next section.

Using Multidimensional Expressions (MDX)

OLE DB for OLAP is a set of COM interfaces designed to extend OLE DB for efficient access to multidimensional data. For expressing queries to multidimensional data stored in SQL Server OLAP cubes, OLE DB for OLAP employs multidimensional expressions (MDX), which are extensions of SQL. OLAP Services supports MDX functions as a full language implementation for creating and querying cube data.

We will provide a brief description of the Multidimensional Expressions. But, before this, we need to create a test application to execute MDX queries.

The MDX Test Application

Before studying the details of MDX, we need a Delphi application that will allow us to enter various MDX statements and immediately see the results of their execution. For doing this, we will create a simple application containing the TDBGrid , TMemo, TADOCOnnection, TADOQuery, TDataSource, TButton component. Then, we need to set change the ConnectionString property of the TADOConnection component. We will to select Microsoft OLE DB Provider for OLAP Services, then select the server name and database name, as usual, and, in this case, the name of initial catalog to use should be NorthWind1 (e.g. the name of our database, which contains the previously created cube). Then, let's create the OnClick event handler of the Button1 component:

procedure TForm1.Button1Click(Sender: TObject);
var i:integer;
begin
 If Memo1.Lines.Count > 0 Then
 try
  With ADOQuery1 do
  begin
   If Active then Active := False;
   ADOQuery1.SQL := Memo1.Lines;
   ADOQuery1.Open;
  end;
  //Change appearance of the DBGrid
  for i:=0 to DBGrid1.Columns.Count-1 do
  DBGrid1.Columns[i].Width:0;
 except
  ShowMessage('Invalid MDX query');
 end;
end;

Now this application is ready for use.

A Brief Overview of Multidimensional Expressions (MDX)

Now we can begin our short tour on MDX queries. To create them, we need to take into account the information about the cube metadata obtained through the OpenSchema method of the ADO Connection object, and to test them, we can run a test application created before.

The MDX syntax

The simplest form of MDX query is:

SELECT axis_specification ON COLUMNS,
axis_specification ON ROWS
FROM cube_name
WHERE slicer_specification

The axis specification can be thought of as the member selection for the axis. A member is an item in a dimension or measure.

The slice specification on the WHERE clause is optional. If it is not specified, the returned measure will be the default for the cube. Unless you actually query the measures dimension, you should always use a slice specification.

The MEMBERS function

The simplest form of an axis specification or member selection involves taking the MEMBERS of the required dimension, including those of the special measures dimension:

SELECT Measures.MEMBERS ON COLUMNS,
[cust].MEMBERS ON ROWS
FROM [Payment_Cube]

This expression satisfies the requirement to query the recorded measures for each customer along with a summary at every defined summary level. Alternatively, it displays the measures for the cust hierarchy. In running this expression, we can also observe an unnamed row member in the first row. It contains summaries for measures for all customers. Such "All " member is generated by default.

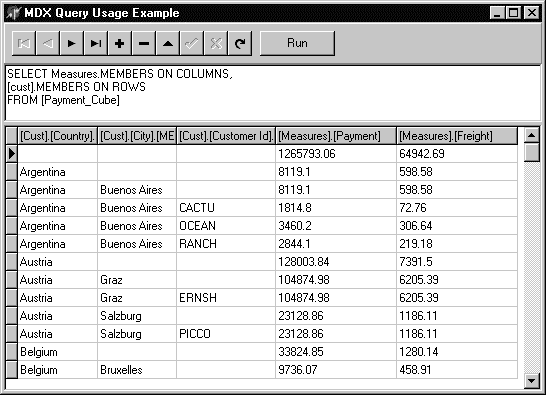

The result of such query is shown in the figure below:

In addition to taking the MEMBERS of a dimension, a single member of a dimension can be selected.

SELECT Measures.MEMBERS ON COLUMNS,
{[cust].[Country].[France],
[cust].[Country].[Germany]} ON ROWS
FROM [Payment_Cube]

This expression queries the measures summarized for the orders in of France and Germany.

The CHILDREN function

To actually query the measures for the members making up both these countries, it is necessary to query the CHILDREN of the required members:

SELECT Measures.MEMBERS ON COLUMNS,
{[cust].[Country].[France].CHILDREN,
[cust].[Country].[Germany].CHILDREN} ON ROWS
FROM [Payment_Cube]

What is the difference between CHILDREN and MEMBERS? The MEMBERS function returns the members for the specified dimension or dimension level, and the CHILDREN function returns the child members for a particular member within the dimension. For example, in the query above, [cust].[Country].[France].CHILDREN are cities in France, but [cust].[City].MEMBRES are all cities where customers resides.

The DESCENDANTS function

Both CHILDREN and MEMBERS functions can be used in formulating expressions, but they do not allow to drill down to a lower level within the hierarchy. This can be done by the DESCENDANTS function. This function allows go to the next level in depth. Its syntax is the following:

DESCENDANTS(member, level [, flags])

If the flags parameter is omitted, the members at the specified level will be included, for example:

SELECT {[Measures].[Payment]} ON COLUMNS,
(DESCENDANTS([cust].UK, [City])) ON ROWS
FROM [Payment_Cube]

In this case, in the rows axis, we will receive the members of the City level of the cust hierarchy for the UK member of the Country level, as it is shown in the figure below:

The same result will be received, if we use the SELF flag value.

If we use the AFTER flag, we will drill down to the depth in the next level of the hierarchy in the rows axis:

SELECT {[Measures].[Payment]} ON COLUMNS,
(DESCENDANTS([cust].UK, [City], AFTER) ) ON ROWS
FROM [Payment_Cube]

In this case, we will receive several rows for all customers in the United Kingdom.

If we use the BEFORE flag, we will receive the higher level of a hierarchy on the axis. In this case, we will receive only one row for the UK member.

At last, if we use the BEFORE_AND_AFTER flag value, we will receive the several rows for the next level of a hierarchy, and the row for the highest level:

SELECT {[Measures].[Payment]} ON COLUMNS,
(DESCENDANTS([cust].UK, [City], BEFORE_AND_AFTER) ) ON ROWS
FROM [Payment_Cube]
The Slicer Specifications

To define what data must be output, we need to define a slicer specification. Let's look at the following example:

SELECT {[Date].CHILDREN} ON COLUMNS,
([cust].MEMBERS)ON ROWS
FROM [Payment_Cube]
WHERE Payment

In this case, we obtain two-dimensional set of summaries of payments for any customer and any year.

The next example shows shipment expenses in Quarter 2 of 1998:

SELECT {[Shipment].children} ON COLUMNS,
([cust].members)ON ROWS
FROM Payment_Cube
WHERE ([Date].[Year].[1998].[Quarter 2])

In this example, we have defined how to select a specific data range in the slicer specification.

Note. Slicing does not affect selection of the axis members. It affects only the values that go into them. This is not the same as filtering, because filtering reduces the number of axis members.

This was a little intro to MDX queries. In fact, they can also use calculated expressions (including conditional expressions), create slices for comparing parallel periods (e.g. January 1997 and January 1998), provide filtering and sorting data, use calculated members (dimension members, whose value is calculated at run-time), and provide many other useful facilities.

Now we can modify our test application by adding a predefined queries. For doing this, let's add the TComboBox component and fill it with the following strings:

At last, let's create an OnChange event handler for the ComboBox1 component.

procedure TForm1.ComboBox1Change(Sender: TObject);
var i:integer;
begin
 i:=Combobox1.ItemIndex;
 Memo1.Lines.Clear;
 case i of
 0: Memo1.Lines.Add('select {[Date].children} on columns,'+
    chr(13)+chr(10)+
    '([cust].members) on rows from Payment_Cube where Freight');
 1: Memo1.Lines.Add('select {[Date].children} on columns,'+
    chr(13)+chr(10)+ ([cust].members) on rows '+
   'from Payment_Cube where Payment');
 2: Memo1.Lines.Add('select {[Measures].Freight,
    [Measures].Payment}'+ chr(13)+chr(10)
    +'on columns,([cust].members) on rows from Payment_Cube ');
 end;
end;

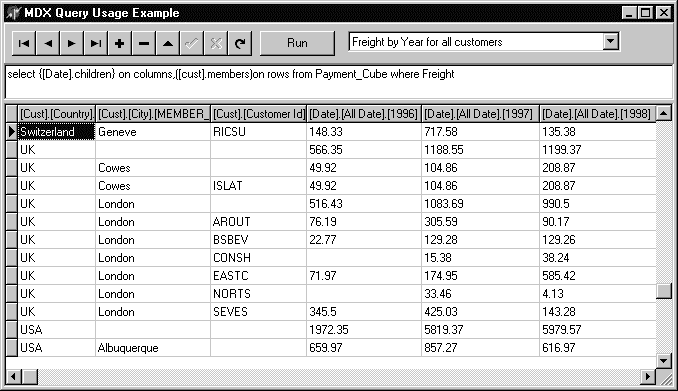

Now we can compile and run the application. After selecting the type of query, the appropriate result set is shown in a grid.

Thus, in this section we have looked at the way how to create a simple Delphi client for SQL Server OLAP Cube using an appropriate OLE DB Provider and ADO components.

Using ADO MD Extensions

The Microsoft Data Access Components (MDAC) contain more than core ADO objects. Version 2.1 comes with the some extensions, and, among them, there is ADO extension to work with multidimensional data that first appeared in the ADO 2.0.

In this section, we will take a look at ADO MD Extensions, their object model and features, and give you some examples of how to use them. Note that all this functionality comes with a single installation file – MDAC_TYP.EXE that ships with Delphi 5 Enterprise and for purchase with Delphi 5 Professional, and is also available in the Microsoft web site for download. ADO MD Extensions, along with ADO Extensions for DDL and Security (ADOX), are available without requiring some extra installation.

ADO MD Objects

As all other interfaces in Microsoft Data Access Components, ADO MD consists of a set of objects. The following diagram shows what objects comes with ADO MD, and how they are related to each other.

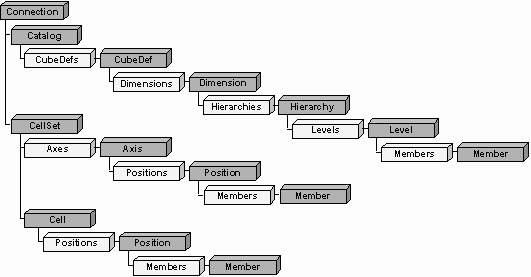

As we can see from the diagram above, the main objects of ADO MD are Catalog and CellSet.

Accessing ADO MD from Delphi

Since ADO MD support in Delphi 5 was not implemented at the components level. We need to use the type library to access ADO MD objects. This type library resides in msadomd.dll file. To do so, choose the Project | Import Type Library command from the main menu and in the Import Type Library dialog box select Microsoft Microsoft ActiveX Data Objects (Multi-dimensional) 1.0 Library.

If you have already imported ADOX type library, you need to avoid conflicts with already declared Delphi TCatalog class. In this case, just rename TCatalog into TADOMDCatalog. It is also better to uncheck the Generate Component Wrapper checkbox because we need only to create a *.pas file to access ADO MD objects. Then press the Create Unit button.

We will end up with the ADOMD_TLB.PAS file, that is Pascal language conversion of the contents of the ADOMD type library. In the most of examples, we will assume that the ADOMD_TLB.PAS file is included in the Uses clause.

Note. Since we will use some COM functions, as well as several routines, implemented in the ADO MD, we will need to include the COMOBJ and ADODB units into the Uses clause.

ADOMD Usage Examples

Now we will create several examples to illustrate how to use ADO MD objects. We will show how to use the Catalog object to retrieve cube metadata, and how to them will show you how to use the CellSet object and its collections.

Using the Catalog Object and its Collections

To show how to use the Catalog object and its collections, we will create three examples. The first one will show you how to get cube names and properties. The second one will show you how to obtain dimension properties. At last, the third one will show how to obtain the names of levels and members.

Getting Cube Names and Properties

In our first example, we will get a list of cubes within a selected catalog. For doing this, we will iterate the CubeDefs collection of the Catalog object, extract the CubeDef object, and get its properties. We will show cubes available in a tree structure, so we will use a TTreeView component from the Win32 page of the Component Palette. Place it into a form along with a TButton component.

First, we need to create an instance of a Catalog object. Here is a code to do this:

Catalog1:=CreateComObject(StringToGUID('ADOMD.Catalog')) as ICatalog;

This line of code creates a COM object based on the object name.

We store the Catalog1 variable and the CubeDef1 variable in the global declaration section. Later we will add some more such variables there.

var
Form1: TForm1;
DS: WideString;
Catalog1: ICatalog;
CubeDef1: CubeDef;
//Nodes for the TTreeview component
CubeNode : TTreeNode;
CubeDefNode: TTreeNode;
RootNode : TTreeNode;

Next, we need a name of the data source where the tables are stored. We use the standard Delphi function PromptDataSource from the ADODB unit to get one and save the value it returns in the global variable DS:

procedure TForm1.Button1Click(Sender: TObject);
begin
 DS := PromptDataSource(Application.Handle, '');
 If DS <> '' Then
 begin
  CubeList(DS);
 end;
end;

The real stuff is implemented inside the CubeList procedure, which procedure can be split up into two parts, the TreeView1 initialization part and the cubes iteration part. In the first part, we create a root node and a child node for cubes. Next, we connect our selected data source to the Catalog object:

Catalog1._Set_ActiveConnection(OleVariant(DataSource));

After that, the data source will be opened, and we can traverse through the cubes within it. First, we check that we have cubes. This is not necessary, since any actual storage should have at least one cube. We do this just to show you how to use Count property of the CubeDefs collection.

If Catalog1.CubeDefs.Count > 0 then
begin
//do something with the Catalog object ...
end;

Now we enter the loop, where at each step we extract one CubeDef object at a time and show it in the TreeView1 component. Here is the code we use for this:

for i := 0 to Catalog1.CubeDefs.Count-1 do
begin
 CubeDef1:= Catalog1.CubeDefs[i] as CubeDef;
 CubeDefNode:=TreeView1.Items.AddChild(CubeNode,
 CubeDef1.Name);
 //do something else with a CubeDef1 object ...
end;

Then, we need to get the CubeDef object properties by iterating its Properties collection and show them in the TreeView1 component.

First, we check that we have at least one property in this collection. Second, we enter the loop, where at each step we extract one Property object at a time and show its name and value in the TreeView1 component. For doing this, we use the Name and the Value properties of the Property object. Here is the code we use for this:

for i := 0 to Catalog1.CubeDefs.Count-1 do
begin
 CubeDef1:= Catalog1.CubeDefs[i] as CubeDef;
 CubeDefNode:=TreeView1.Items.AddChild(CubeNode,
 CubeDef1.Name);
 //do something else with a CubeDef1 object ...
end;

Thus, the full source code of the CubeList procedure will look like that:

procedure TForm1.CubeList(DataSource: WideString);
var
i,j : Word;
begin
 Catalog1:=CreateComObject(StringToGUID('ADOMD.Catalog')) as  ICatalog;
 TreeView1.Items.Clear;
 RootNode := TreeView1.Items.Add(nil, 'Catalog');
 CubeNode := TreeView1.Items.AddChild(RootNode, 'Cubes');
 Catalog1._Set_ActiveConnection(OleVariant(DataSource));
 If Catalog1.CubeDefs.Count > 0 then
 begin
  For i := 0 to Catalog1.CubeDefs.Count-1 do
  begin
  CubeDef1:= Catalog1.CubeDefs[i] as CubeDef;
  CubeDefNode:=TreeView1.Items.AddChild(CubeNode, CubeDef1.Name);
  if CubeDef1.Properties.Count >0 then
   for j:=0 to CubeDef1.Properties.Count - 1 do
   begin
    TreeView1.Items.AddChild(CubeDefNode,
    CubeDef1.Properties[j].Name+'='+
    VarToStr(CubeDef1.Properties[j].Value));
   end;
  end;
 end;
end

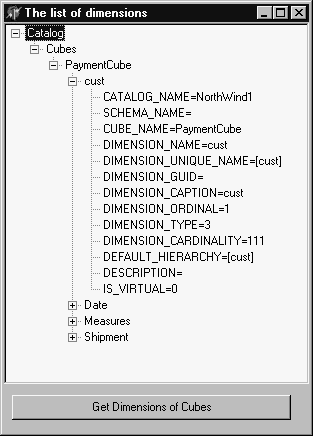

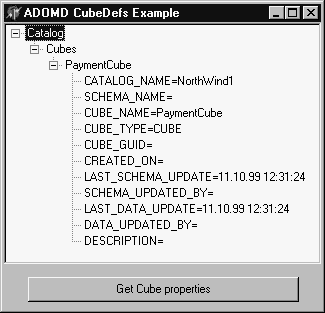

After saving and compiling this project, we can obtain the following output in the TreeView1 component:

Getting Dimension Properties

In our second example, we will get a list of dimensions and their properties within a selected catalog. For this, we will iterate the Dimensions collection of the CubeDef object, extract the Dimension object and get its properties. It is a modified version of the previous example, so it also uses a TTreeView component.

As in the previous case, we also need to create an instance of a Catalog object, and obtain the data source name using the PromptDataSource function. Let's also add to the global declaration section the next line:

Var
Form1: TForm1;
DS: WideString;
Catalog1: ICatalog;
CubeDef1 : CubeDef;
Dimension1 : Dimension;//!
//Nodes for the TTreeview component
CubeNode : TTreeNode;
DimNode : TTreeNode;
RootNode : TTreeNode;
CubeDefNode : TTreeNode;//!

As the real stuff is implemented inside the CubeList procedure, we need to modify it a little:

procedure TForm1.CubeList(DataSource: WideString);
var i:integer;
begin
 Catalog1:=CreateComObject(StringToGUID('ADOMD.Catalog')) as ICatalog;
 TreeView1.Items.Clear;
 RootNode := TreeView1.Items.Add(nil, 'Catalog');
 CubeNode := TreeView1.Items.AddChild(RootNode, 'Cubes');
 Catalog1._Set_ActiveConnection(OleVariant(DS));
 if Catalog1.CubeDefs.Count > 0 then
 begin
  for i := 0 to Catalog1.CubeDefs.Count-1 do
  begin
   CubeDef1:= Catalog1.CubeDefs[i] as CubeDef;
   CubeDefNode:=TreeView1.Items.AddChild(CubeNode,CubeDef1.Name);
   if CubeDef1.Dimensions.Count > 0 then  ShowDimProp; //!
  end;
 end;
end;

This procedure looks like the same one from the previous example. But there are some differences. As in the previous case, we need to connect the Catalog object to our selected data source, and then traverse through the cubes within it. Also, as in the previous case, we enter the loop, where at each step we extract one CubeDef object at a time and show it in the TreeView1 component.

But then, we need to obtain dimensions and their properties for each cube. To do this, we call the ShowDimProp procedure. Its code looks like that:

procedure TForm1.ShowDimProp;
var i,j:integer;
begin
 for j:=0 to CubeDef1.Dimensions.Count-1 do
 begin
  Dimension1:=CubeDef1.Dimensions[j] as Dimension;
  DimNode:=TreeView1.Items.AddChild(CubeDefNode,Dimension1.Name);
  if Dimension1.Properties.Count >0 then
   begin
   for i:=0 to Dimension1.Properties.Count - 1 do
   begin
    TreeView1.Items.AddChild(DimNode,Dimension1.Properties[i].Name+'='+
    VarToStr(Dimension1.Properties[i].Value));
   end;
  end;
 end;
end;

Let's look at this procedure in more details. First, we need to get the Dimension collection of the CubeDef1 object, check whether it contains at least one dimension, iterate it, obtain the Dimension object from it and add its name to the TreeView1 component:

procedure TForm1.SHowDimProp;
var i,j:integer;
begin
 for j:=0 to CubeDef1.Dimensions.Count-1 do
 begin
  Dimension1:=CubeDef1.Dimensions[j] as Dimension;
  DimNode:=TreeView1.Items.AddChild(CubeDefNode,
  Dimension1.Name);
  //do something else with this dimension
 end;
end;

At last, we need to get the Dimension1 object properties by iterating its Properties collection and show them in the TreeView1 component.

First, as in the previous example, we check that we have at least one property in this collection. Second, we enter the loop, where at each step we extract one Property object at a time and show its name and value in the TreeView1 component. Here is the code we use for this:

if Dimension1.Properties.Count >0 then
begin
 for i:=0 to Dimension1.Properties.Count - 1 do
 begin
  TreeView1.Items.AddChild(DimNode,
  Dimension1.Properties[i].Name+'='+
  VarToStr(Dimension1.Properties[i].Value));
 end;
end;
After saving and compiling this project, we can obtain the
 next output in the TreeView1 component:



Getting Names of Hierarchies, Levels and Members

In our third example, we will get a list of all objects inside the selected catalog, i.e. cubes, dimensions, their hierarchies, levels and members. For this, we will iterate all collections of all objects within hierarchy of the Catalog collections. It is also a modified version of the previous example, so it also uses a TTreeView component.

As in the previous example, we also need to create an instance of a Catalog object, and obtain the data source name using the PromptDataSource function. Let's also add the following lines to the global declaration section:

var
Form1 : TForm1;
DS : WideString;
Catalog1 : ICatalog;
CubeDef1 : CubeDef;
Dimension1 : Dimension;
Hierarchy1 : Hierarchy;
Level1 : Level;
Member1 : Member;
CubeNode : TTreeNode;
RootNode : TTreeNode;
CubeDefNode : TTreeNode;
DimNode : TTreeNode;
HierNode, LevelNode : TTreeNode;
NodeName : String;

As the real stuff is implemented inside the CubeList procedure, we need to modify it a little again:

procedure TForm1.CubeList(DataSource: WideString);
var i:Word;
begin
 Catalog1:= CreateComObject(StringToGUID('ADOMD.Catalog')) as ICatalog;
 TreeView1.Items.Clear;
 RootNode := TreeView1.Items.Add(nil, 'Catalog');
 CubeNode := TreeView1.Items.AddChild(RootNode, 'Cubes');
 Catalog1._Set_ActiveConnection(OleVariant(DS));
 if Catalog1.CubeDefs.Count > 0 then
  begin
  for i := 0 to Catalog1.CubeDefs.Count-1 do
  begin
   CubeDef1:= Catalog1.CubeDefs[i] as CubeDef;
   CubeDefNode:=TreeView1.Items.AddChild(CubeNode,CubeDef1.Name);
   if CubeDef1.Dimensions.Count > 0 then DimList; //!
  end;
 end;
end;

This procedure is almost the same as one from the previous example. But there are some differences. As in the previous case, we need to connect the Catalog object to our selected data source, and then traverse through the cubes within it. Also, as in the previous case, we enter the loop, where at each step we extract one CubeDef object at a time and show it in the TreeView1 component.

Then, we also need to obtain dimensions for each cube. To do this, we call the DimList procedure: Its code looks like that:

procedure TForm1.DimList;
var i:Word;
begin
 for i:=0 to CubeDef1.Dimensions.Count-1 do
 begin
  Dimension1:=CubeDef1.Dimensions[i] as Dimension;
  DimNode:=TreeView1.Items.AddChild(CubeDefNode,Dimension1.Name);
  if Dimension1.Hierarchies.Count > 0 then   HierarchyList;
 end;
end;

Instead of iterating the Property collection of the Dimension1 object, we need to iterate its Hierarchies collection. So, we need to check that we have at least one hierarchy in this collection.

To obtain a list of hierarchies of the dimension, we call the HierarchyList procedure. It looks like that:

procedure TForm1.HierarchyList;
var i: Word;
begin
 for i:=0 to Dimension1.Hierarchies.Count-1 do
 begin
  Hierarchy1:=Dimension1.Hierarchies[i] as Hierarchy;
  NodeName:=Hierarchy1.Name;
  if Hierarchy1.Name='' then NodeName:='Hierarchy';
  HierNode:=TreeView1.Items.AddChild(DimNode, NodeName);
  if Hierarchy1.Levels.Count >0 then
   LevelList;
 end;
end;

Here we enter the loop, where at each step we extract one Hierarchy object at a time and show it in the TreeView1 component. Then, we need to know is there any level in this hierarchy.

We need to comment the following line:

if Hierarchy1.Name='' then NodeName:='Hierarchy';

It is used for the case, when the Name property of the Hierarchy object returns an empty string. Our cube just contains unnamed Hierarchy objects, one for each dimension.

At the next step, if there are levels in this collection, we need to iterate the Levels collection of the Hierarchy object. The LevelList procedure is designed for this:

procedure TForm1.LevelList;
var i: Word;
begin
 for i:=0 to Hierarchy1.Levels.Count-1 do
 begin
  Level1:=Hierarchy1.Levels[i] as Level;
  LevelNode:=TreeView1.Items.AddChild(HierNode, Level1.Name);
  if Level1.Members.Count >0 then MemberList;
 end;
end;

Here we enter the loop, where at each step we extract one Level object at a time and show it in the TreeView1 component.

At last, we need to check that we have at least one member in the Members collection of the Level object, and, in the case we have one, to iterate the Members collection of the Level object. The MemberList procedure is designed for this:

procedure TForm1.MemberList;
var i: Word;
 begin
 for i:=0 to Level1.Members.Count - 1 do
 begin
  Member1:=Level1.Members[i] as Member;
  TreeView1.Items.AddChild(LevelNode, Member1.Name);
 end;
end;

Here, we enter the loop, where at each step we extract one Member object at a time and show it in the TreeView1 component.

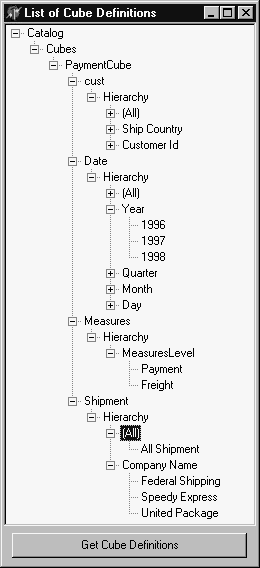

After saving and compiling this project, we can obtain the following output in the TreeView1 component:



Using CellSet Objects

To show how to use the CellSet object and its collections, we will create two examples.

The first one will show you how to retrieve the members of positions along Axis objects of the Axes collection of the CellSet object, how to retrieve the Cells values using the Item method, and place all obtained values into a grid. The second one will show you how to retrieve the same data to the client dataset.

Retrieving Cells to a Grid

In this example we will create a CellSet object and put the values of its cells into a grid. Also, we will draw a chart with the CellSet content. For doing this, we will iterate through all Cell values available by using the Item method of the CellSet object.

Let's start a new project and place the TStringGrid component, TButton component, TChart component on a form. Also, let's place on the form the TComboBox component (we will fill it with names of some predefined MDX queries), and TMemo component (it will contain the text of an MDX query, which can be edited by the user). You can arrange these components as you like, set the necessary Align properties, use toolbars, splitters, etc.

As opposite to the examples shown earlier, let's use Automation with Variants instead of using interfaces, because this results in more simple code.

First, let's prepare a set of pre-defined MDX queries, and place their names to the ComboBox1.Items property, for example:

ComboBox1.Items  MDX Query
Payments by year for for all countries  SELECT {[Date].children} ON COLUMNS, ([cust].children) ON ROWS FROM Payment_Cube WHERE Payment
Payments by quarter for 1997 for all countries  SELECT {[Date].[Year].[1997].children} ON COLUMNS, ([cust].children) ON ROWS FROM Payment_Cube WHERE Payment
Payments by year for all customers  SELECT {[Date].[Year].members} ON COLUMNS, ([cust].[Customer ID].members) ON ROWS FROM Payment_Cube WHERE Payment
Payments by year for customers in Germany SELECT {[Date].[Year].members} ON COLUMNS, ([cust].[Country].[Germany].children) ON ROWS FROM Payment_Cube WHERE Payment


The MDX query text itself will be placed to the Lines property of the Memo1 component. For doing this, we need to create the OnChange event handler for the ComboBox1 component:

procedure TForm1.ComboBox1Change(Sender: TObject);
var i:integer;
begin
i:=Combobox1.ItemIndex;
Memo1.Lines.Clear;
case i of
0: begin
    Memo1.Lines.Clear;
    Memo1.Lines.Add('select {[Date].children} on columns,'+
    '([cust].children)on rows from PaymentCube where Payment');
   end;
1: begin
    Memo1.Lines.Clear;
    Memo1.Lines.Add('select {[Date].[Year].[1997].children}'+
    'on columns,'+
    ' ([cust].children)on rows from PaymentCube where Payment');
   end;
2: begin
    Memo1.Lines.Clear;
    Memo1.Lines.Add('select {[Date].[Year].members} on columns,'+
    '([cust].[Customer ID].members)on rows from PaymentCube where Payment');
   end;
3: begin
    Memo1.Lines.Clear;
    Memo1.Lines.Add('select {[Date].[Year].members} on columns,'+
    '([cust].[Ship Country].[Germany].children) on rows'+
    +' from PaymentCube where Payment');
   end;
end;

This event handler places the appropriate text of an MDX query, when the user selects an item from the ComboBox1. In addition, the user can just edit the Memo1 content at run-time to retrieve CellSets that results from the custom MDX queries.

Second, we need to provide a Variant variable to work with when creating an instance of the CellSet object. We store this variable in the global declaration section:

var
Form1: TForm1;
DS: WideString;
Cellset1:Variant;

Next, we need a name of the data source where the cubes are stored. We use the standard Delphi function PromptDataSource again to get one, and save the value it returns in the global variable DS:

procedure TForm1.Button1Click(Sender: TObject);
begin
 DS := PromptDataSource(Application.Handle, '');
 If DS <> '' Then
  begin
  CellGrid(DS);
  CellChart;
 end;
end;

As you can see, we put this code in the Button1 event handler – when the user presses the button, he faces the data source selection dialog. When one is selected, i.e. DS variable is not empty string, we call the CellGrid procedures passing the data source name as an argument, and then call the CellChart procedure to draw a chart using the StringGrid1 data.

procedure TForm1.CellGrid(DataSource: WideString);
var i,j: word;
begin
 CellSet1:=CreateOleObject('ADOMD.Cellset');
 CellSet1.Open(Memo1.Text,DataSource);
 StringGrid1.ColCount:ÎllSet1.Axes[0].Positions.Count+1;
 StringGrid1.RowCount:= CellSet1.Axes[1].Positions.Count+1;
 for j:=1 to CellSet1.Axes[1].Positions.Count do
 StringGrid1.Cells[0,j]: CellSet1.Axes[1].Positions[j-1].Members[0].Caption;
 for i:=1 to CellSet1.Axes[0].Positions.Count do
 begin
  StringGrid1.Cells[i,0]:  CellSet1.Axes[0].Positions[i-1].Members[0].Caption;
  for j:=1 to CellSet1.Axes[1].Positions.Count do
  begin
   if Cellset1.Item[i-1,j-1].FormattedValue<>'' then
   StringGrid1.Cells[i,j]:Îllset1.Item[i-1,j-1].Value
   else StringGrid1.Cells[i,j]:='0';
   end;
 end;
 CellSet1.Close;
 CellSet1:=Unassigned;
end;
First, in this procedure we must create an instance of the CellSet object:
CellSet1:=CreateOleObject('ADOMD.Cellset');

Second, we need to open this CellSet using the data source obtained from the PromptDataSource function, and the text of an MDX query taken from the Memo1 component.

CellSet1.Open(Memo1.Text,DataSource);

Third, we need to find out, how many columns and rows the StringGrid1 component must contain. For doing this, we need to use the Count properties of the Positions collections of the Axis objects, which belong to the Axes collection of the CellSet object:

StringGrid1.ColCount:ÎllSet1.Axes[0].Positions.Count+1;
StringGrid1.RowCount:ÎllSet1.Axes[1].Positions.Count+1;

As we have discussed earlier, usually there are two Axis object in the Axes collection - the first one for columns (Axes[0]), the second one for rows (Axes[1]). As we need to have an additional row for column names and an additional column for row names, we add one to the value of the Count properties for both axes.

Forth, we need to fill the first column of the StringGrid1 component with the row names. To do this, we need to iterate all Position objects of the Positions collection of the appropriate Axis object (in this case, it is the CellSet1.Axes[0] object) . We can get the row name from the Caption property of the primary item of the Members collection of such Position object:

for j:=1 to CellSet1.Axes[1].Positions.Count do
 StringGrid1.Cells[0,j]: CellSet1.Axes[1].Positions[j-1].Members[0].Caption;

Fifth, let's also fill the first row of the StringGrid1 with the column names. To do this, we need to iterate all Position objects of the Positions collection of the appropriate Axis object (now it is the CellSet1.Axes[0] object):

for i:=1 to CellSet1.Axes[0].Positions.Count do
begin
 StringGrid1.Cells[i,0]: CellSet1.Axes[0].Positions[i-1].Members[0].Caption;
 //do something else with this column ...
end;

Sixth, let's fill the rest of the StringGrid1 components by the CellSet content. For doing this, we need to obtain the necessary values by using the Value property of Cell objects that are returned by the Item method of the CellSet object:

for j:=1 to CellSet1.Axes[1].Positions.Count do
begin
 if Cellset1.Item[i-1,j-1].FormattedValue<>'' then
 StringGrid1.Cells[i,j]:Îllset1.Item[i-1,j-1].Value
 else StringGrid1.Cells[i,j]:='0';
end;

We put zero to all empty cells of the StringGrid1. This component itself does not require filling such cells by data. But later we will create a chart with this data, so it is necessary to have a valid numbers in these cells.

At last, we need to close the CellSet object and de-assign the Variant variable:

CellSet1.Close;
CellSet1:=Unassigned;

To provide a good user interface for our application, let's create a chart with the StringGrid1 data. The CellChart procedure is designed to do this:

procedure TForm1.CellChart;
var i,j:integer;
 ASeries:THorizBarSeries;
 y : real;
 x :string;
begin
 Chart1.SeriesList.Clear;
 for i:=1 to StringGrid1.ColCount-1 do
 begin
  ASeries:=THorizBarSeries.Create(Chart1);
  Chart1.AddSeries(ASeries);
  ASeries.Marks.Visible:úlse;
  ASeries.Title:=StringGrid1.Cells[i,0];
  for j:=1 to StringGrid1.RowCount-1 do
  begin
   x:=StringGrid1.Cells[0,j];
   y:=StrToFloat(StringGrid1.Cells[i,j]);
   Chart1.Series[i-1].AddX(y,x);
  end;
 end;
end;

First, we need to clear the series list of the Chart1 component.

Chart1.SeriesList.Clear;

Second, we need to iterate all columns to create appropriate series of the chart:

for i:=1 to StringGrid1.ColCount-1 do
begin
 ASeries:=THorizBarSeries.Create(Chart1);
 Chart1.AddSeries(ASeries);
 ASeries.Marks.Visible:úlse;
 ASeries.Title:=StringGrid1.Cells[i,0];
 //do something with this series...
end;

At last, we need to add points to all specific series:

for j:=1 to StringGrid1.RowCount-1 do begin
 x:=StringGrid1.Cells[0,j];
 y:=StrToFloat(StringGrid1.Cells[i,j]);
 Chart1.Series[i-1].AddX(y,x);
end;

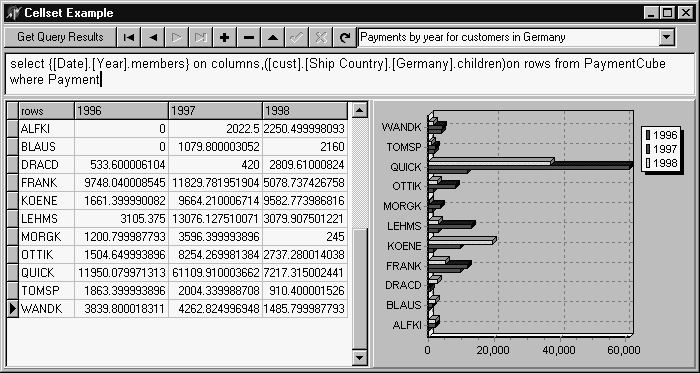

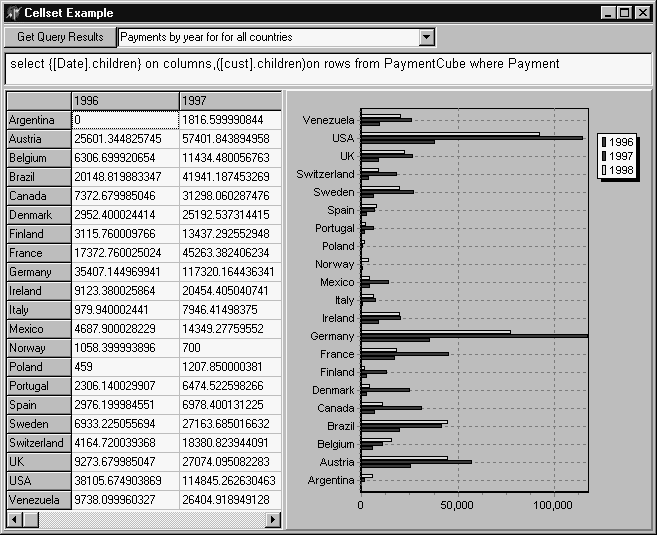

The result of retrieving cells to a string grid and a chart is shown below.

Retrieving Cells to a Client Dataset

The next example will show you how to retrieve the Cell object values data to the client dataset. It can be useful if you need to use facilities of future processing this data in a client application, e.g. sorting, filtering, generating reports or HTML contents.

In this example we will create a CellSet object and put the values in its cells into the TClientDataSet component. As in the previous example, we will draw a chart with the CellSet content. For doing this, we will also iterate through all Cell values available by using the Item method of the CellSet object.

Let's start a new project and place the TClientDataSet component, the TDBGrid component, the TDBNavigator component, the TButton component, the TChart component on a form. Also, let's place on the form the TComboBox component (as in the previous example, we will fill it with names of predefined MDX queries), and the TMemo component (as in the previous example, it will contain the text of MDX query, which can be edited by the user). You can arrange these components, set the necessary Align properties, use toolbars, splitters, etc.

As in the previous example, we will use Automation with Variants instead of using interfaces.

First, let's prepare a set of pre-defined MDX queries. Let they be the same as in the previous example. As in the previous example, the MDX query text will be placed to the Lines property of the Memo1 component. So we will place the MDX query names into the Items property of the ComboBox1 component, and create the same the OnChange event handler for the ComboBox1 component (see the description of the previous example for details).

Second, we need to provide a Variant variable to work with when creating an instance of the CellSet object. We store it variable in the global declaration section:

var
Form1: TForm1;
DS: WideString;
Cellset1:Variant;

Next, we also need a name of the data source where the cubes are stored. We use the standard Delphi function PromptDataSource to get one, and save the value it returns in the global variable DS:

procedure TForm1.Button1Click(Sender: TObject);
begin
 DS := PromptDataSource(Application.Handle, '');
 If DS <> '' Then
 begin
  CDSFill(DS);
  CDSChart;
 end;
end;

As in the previous case, we put this code in the Button1 on click event handler. When the data source is selected, we call the CDSFill procedures passing the data source name as an argument, and then call the CDSChart procedure to draw a chart using the CellSet data.

The real stuff is implemented inside the CDSFill procedure, source code of which looks like that:

procedure TForm1.CDSFill(DataSource: WideString);
var i,j:integer;
begin
 CellSet1:=CreateOleObject('ADOMD.Cellset');
 CellSet1.Open(Memo1.Text,DataSource);
 with ClientDataSet1 do
 begin
  Close;
  with FieldDefs do
  begin
   Clear;
   with AddFieldDef do
   begin
    Name := 'rows';
    DataType := ftString;
   end;
   for i:=1 to CellSet1.Axes[0].Positions.Count do
   begin
    with AddFieldDef do
    begin
     Name := CellSet1.Axes[0].Positions[i-1].Members[0].Caption+
     ' ('+IntToStr(CellSet1.Axes[0].Positions[i-1].Ordinal)+')';
     DataType := ftFloat;
    end;
   end;
  end;
  CreateDataSet; Open;
  for j:=1 to CellSet1.Axes[1].Positions.Count do
  begin
   Append;
   Fields[0].Value:= CellSet1.Axes[1].Positions[j-1].Members[0].Caption;
   for i:=1 to CellSet1.Axes[0].Positions.Count do
   begin
    if Cellset1.Item[i-1,j-1].FormattedValue<>'' then
    Fields[i].Value:Îllset1.Item[i-1,j-1].Value
    else ClientDataSet1.Fields[i].Value:=0;
   end;
  end;
  CellSet1.Close;
  CellSet1:=Unassigned;
 end;
end;

First, in this procedure we must create an instance of the CellSet object and open it:

CellSet1:=CreateOleObject('ADOMD.Cellset');
CellSet1.Open(Memo1.Text,DataSource);

Second, we need to create the first field of the client dataset. It will contain the row names, so it will be of a string type.

with ClientDataSet1 do
begin
Close;
 with FieldDefs do
 begin
  Clear;
  with AddFieldDef do
  begin
   Name := 'rows';
   DataType := ftString;
  end;
  //do something else with FieldDefs...
 end;
 //do something else with ClientDataSet1...
end;

Third, we need to create fields to store the CellSet data. These fields must be of a Float type.

with AddFieldDef do
begin
 Name := CellSet1.Axes[0].Positions[i-1].Members[0].Caption+
 ' ('+IntToStr(CellSet1.Axes[0].Positions[i-1].Ordinal)+')';
 DataType := ftFloat;
end;

We need to comment this code. The reason of using the Ordinal property in the field name is that field names must be unique in the dataset. But we can have the same Caption properties for different positions. For example, look at the next MDX query:

select {[Date].[1997].[Quarter 1], [Date].[1998].[Quarter 1]}
on columns, ([cust].children)on rows from PaymentCube where Payment

The result of this query will contain two columns with the same name Quarter 1. But in this case we cannot use these names as field names. As for Ordinal value, it is unique, so we can add it to the field name.

You can, of course, provide any other way to obtain unique names of your fields. For example, you can use the UniqueName property of the appropriate member instead of using Caption property:

with AddFieldDef do
begin
 Name : CellSet1.Axes[0].Positions[i-1].Members[0].UniqueName;
 DataType := ftFloat;
end;

Fourth, we need to create the client dataset and open it.

CreateDataSet;
Open;

Now we need to iterate the CellSet rows and add each of them to the client dataset. First, we need to append a record to the client dataset:

for j:=1 to CellSet1.Axes[1].Positions.Count do
begin
 Append;
 //fill this record with data
end;

Second, we need to insert data into the first field of the created record. It will be the name of the Cellset row. So, we need to use the Caption property of the primary member of the current Position object, that is an item of the Positions collection of the appropriate axis. In this case, it is the CellSet1.Axes[1] object:

Fields[0].Value:ÎllSet1.Axes[1].Positions[j-1].Members[0].Caption;

Third, we need to fill the rest fields of the record. The values to be inserted are the Value properties of the Cell objects that are results of executing the Item method of the CellSet object.

for i:=1 to CellSet1.Axes[0].Positions.Count do
begin
 if Cellset1.Item[i-1,j-1].FormattedValue<>'' then
 Fields[i].Value:Îllset1.Item[i-1,j-1].Value
 else ClientDataSet1.Fields[i].Value:=0;
end;

At last, we need to close the CellSet object and de-assign the Variant variable:

CellSet1.Close;
CellSet1:=Unassigned;

To provide a good user interface for our application, let's create a chart with the ClientDataSet1 data. The CDSChart procedure is designed to do this:

procedure TForm1.CDSChart;
var i,j:integer;
ASeries:THorizBarSeries;
y: real;
x: string;
begin
 Chart1.SeriesList.Clear;
 for i:=1 to ClientDataSet1.Fields.Count-1 do
 begin
  Aseries:=THorizBarSeries.Create(Chart1);
  Chart1.AddSeries(ASeries);
  Aseries.Marks.Visible:úlse;
  Aseries.Title:= ClientDataSet1.Fields[i].FieldName;
  ClientDataSet1.First;
  while not ClientDataSet1.eof do
  begin
   x:=ClientDataSet1.Fields[0].Value;
   y:=ClientDataSet1.Fields[i].Value;
   Chart1.Series[i-1].AddX(y,x);
   ClientDataSet1.next;
  end;
 end;
end;

First, we need to clear the series list of the Chart1 component.

Chart1.SeriesList.Clear;

Second, we need to iterate all columns to create appropriate series of the chart:

for i:=1 to ClientDataSet1.Fields.Count-1 do
begin
 Aseries:=THorizBarSeries.Create(Chart1);
 Chart1.AddSeries(ASeries);
 Aseries.Marks.Visible:úlse;
 Aseries.Title:= ClientDataSet1.Fields[i].FieldName;
 //do something with this series...
end;

At last, we need to add points to all specific series:

ClientDataSet1.First;
while not ClientDataSet1.eof do
begin
 x:=ClientDataSet1.Fields[0].Value;
 y:=ClientDataSet1.Fields[i].Value;
 Chart1.Series[i-1].AddX(y,x);
 ClientDataSet1.next;
end;

The result of retrieving cells to the client dataset and an appropriate chart is shown below.

Pros and Cons of Delphi Server-side OLAP applications

Using server-side OLAP looks more advantageous that using client-side one.

The important advantage of such way of creating OLAP applications is that in this case you can provide on-line analytical processing possibilities without bringing a lot of data to the client application. In this case, all necessary calculations are provided by the database server, and the end user obtains only slices from it. In addition, modern OLAP extensions, such as considered above, can provide enough possibilities for choosing optimal balance between performance of server calculations and the server storage size. And, at last, querying cubes from client applications is also available. It is not very difficult to create a client application, which generates necessary queries.

If we discuss the particular Delphi implementation of server-side OLAP with ADO data sources, we can see that it is not very difficult to create server-side OLAP applications with the user interface similar to the interface of applications with the Decision Cube components.

However, this way of creating OLAP applications also have a little disadvantage. We have seen, that we can easily use OLE DB provider for SQL Server OLAP Extensions. But if we use OLAP extensions of other vendor, we have not any guarantee, that an appropriate OLE DB provider is already available. So, in a general case, we need use Microsoft SQL Server for providing server-side OLAP possibilities, even if we want to store data in another database server (we have mentioned above, that the data sources for creating OLAP cubes can differ from MS SQL Server). But we hope that this problem seems to be solved just in the nearest future.

It should be mentioned, however, that other OLAP vendors sometimes provide some client objects to add possibility of using their server-side OLAP, such as ActiveX controls (and, of course, SQL Server OLAP Extensions does too). But this is out of the scope of this book.

Conclusion

In this article, we have provided an introduction to On-Line Analytical Processing (OLAP). Now we know that:

Also, we have discussed two ways of implementing OLAP in Delphi application – the client-side OLAP and the server-side one. Now we know that:

We have also discussed one of particular implementation of the Delphi server-side OLAP based on using the OLAP extensions implemented in Microsoft SQL Server 7.0 along with Delphi ADO components. We have described how to create multidimensional cube, and how to process it, and how to access the cube metadata and data from Delphi. Now we know that:

Also, we have discussed using server-side OLAP Delphi applications using ADO MD objects. Now we know that:

We have also discussed advantages and disadvantages of using server-side OLAP for creating OLAP applications. We see that this way is free from such disadvantage as bringing a lot of data to the client. It can be used with large data sources, because in this case all summaries are calculated by the database server. Modern OLAP server-side software, such as OLAP Extension for MS SQL Server 7.0, provides a lot of possibilities to bring summaries to client applications, including OLE DB provider for OLAP Extensions and ADO MD extensions, and this make it possible to create Delphi clients for such OLAP servers.


Interface Ltd.

Âàøè çàìå÷àíèÿ è ïðåäëîæåíèÿ îòïðàâëÿéòå àâòîðó
Ïî òåõíè÷åñêèì âîïðîñàì îáðàùàéòåñü ê âåáìàñòåðó
Äîêóìåíò îïóáëèêîâàí: 14.07.00
